How to Use a Taper Shank Drill Bit on a Radial Arm Drill Press

Using a Taper Shank Drill Bit on a radial arm drill press requires proper insertion, drift selection, and speed control. This step‑by‑step tutorial covers cleaning the Morse taper socket, seating the bit with a single firm push, matching the tang to the drift slot, and removing the bit without damaging the spindle. We also discuss why TIR (total indicator reading) matters on radial drills and how to avoid taper spinning under high torque.

Product Description

Tapered pentagon socket and bit set specification:

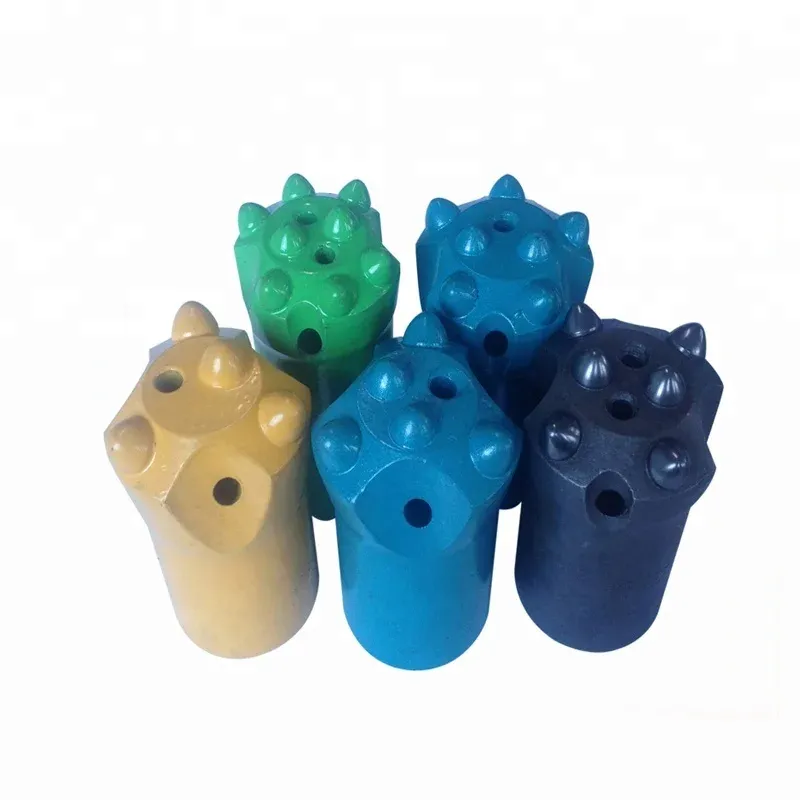

1.Product Name:Tungsten carbide tapered pentagon socket and bit set.

2.Application:Tapered pentagon socket and bit set can be used for drilling granites,marble quarry,mining,railway, tunnel etc.

3.Feature:Tapered pentagon socket and bit set connect to jack hammer for drilling holes.

4.Material:High quality carbide for buttons and high quality steel for bit body.

5.MOQ:No requirement for testing and trial order

Name	Tapered pentagon socket and bit set
Material	Steel & Carbide
Type	Chisel/Cross/Button Bits
Application	Mining,Quarrying,Ground Engineering,Tunnel Project
Advantage	1.High Quality & Competitive Price 2.China Top 3 Manufacturer 3.Good After Service
Certification	ISO9001
Package	1pc/Opp Bag,50pcs/Plastic Box
Delivery	Usually Within 30 Days(10 Days with Stock)
Payment Term	TT/Western Union/LC
MOQ	No Request With Trial Order

We can design and manufature products according to your requirment of diamater,number of air holes,carbide button shape and face shape.

The defining feature of a Morse Taper Drill Bit is the conical shank (MT1, MT2, MT3, MT4, MT5). Unlike a straight shank, a Morse taper utilizes the wedge principle. When the male taper of the bit is seated into the female socket of the spindle, the friction bond is so strong that it transmits high torque without a drawbar (though drawbars are often used for safety on larger sizes like MT3 and above).

Self-Holding vs. Self-Releasing: Morse tapers are "self-holding." The deeper they are seated, the tighter they grip.
Removal: A drift (wedge) is inserted through a slot in the spindle to break the friction seal.
A common point of confusion in SEO is the distinction between Taper Shank Drill Bits (MT shank) and Taper Length Drill Bits (long flute length).
Taper Shank: Refers to the mounting style (Morse taper). Used for high torque.
Taper Length: Refers to the flute length, typically 8x to 12x the diameter (longer than a jobber but shorter than an aircraft extension).
High-Speed Steel (HSS)
Standard HSS (often referred to as M2) is the most common material for general-purpose taper bits.
Composition: Carbon, Chromium, Vanadium, Molybdenum, and Tungsten.
Performance: Good toughness, resists breakage in interrupted cuts.
Application: Drilling wood, plastics, and mild steels with a tensile strength
Taper Rock Bit (Carbide Button Bits): Used in mining. The steel body is forged, and tungsten carbide buttons are pressed into the gauge. These are designed for percussive drilling in hard rock (granite, basalt).
Tapered Web Thickness: A design variant where the core thickness increases towards the shank. This provides superior rigidity during deep drilling and has been shown to reduce hole diameter errors compared to standard geometries.

Cobalt HSS (HSCo/M35)

For high-heat applications like stainless steel, HSCo or M35 Cobalt is the industry standard.

Composition: HSS base with 5% or 8% Cobalt.
Performance: Retains hardness at red heat (up to 650°C). It is less tough than standard HSS but offers superior wear life.
Application: Drilling stainless steel (austenitic and martensitic), titanium, and high-alloy steels up to 1200 N/mm². Premium brands like Würth’s “VaryTap” utilize HSCo for blind hole applications.

Manufacturing Process – Milled vs. Fully Ground

This is the most critical engineering distinction in manufacturing. A CNC ground drill bit is vastly superior to a milled one. The chart below explains the quantitative differences.

Parameter	Milled Taper Drill	Fully Ground Taper Drill	Engineering Impact
Flute Surface	Rough (Ra 1.6-3.2 µm)	Smooth (Ra 0.4-0.8 µm)	Rough flutes cause chip packing and heat buildup.
Concentricity (TIR)	0.03 – 0.06 mm	< 0.02 mm	Poor TIR causes oversized holes and uneven wear.
Diameter Tolerance	h9 – h10	h8 (Precision)	Tighter tolerance allows for press-fit hole accuracy.
Taper Accuracy	±0.01-0.02 mm	±0.005 mm / 100 mm	Poor taper fit leads to slippage and runout in the spindle.
Relative Tool Life	60-75%	100% (Baseline)	Ground tools last significantly longer in production runs.

The Milling Process (Economy)

Turning: The Morse taper is turned on a lathe. This leaves visible concentric turning marks.
Flute Milling: A rotating cutter mills the helix into the blank. This process is fast but leaves "feed lines" inside the flute, acting as stress risers and friction points.
Point Grinding: Only the tip is ground.

The Full Grinding Process (Premium)

Single Setup: The blank is loaded into a 5-axis CNC tool grinder.
Grinding: A single wheel or sequence of wheels grinds the Morse taper, the flutes, the lands (backing off the Cutting edge), and the point (including split point thinning) in one operation.
Result: Perfect concentricity. The polish on the flutes ensures chips slide out easily, reducing the risk of jamming in blind holes.
