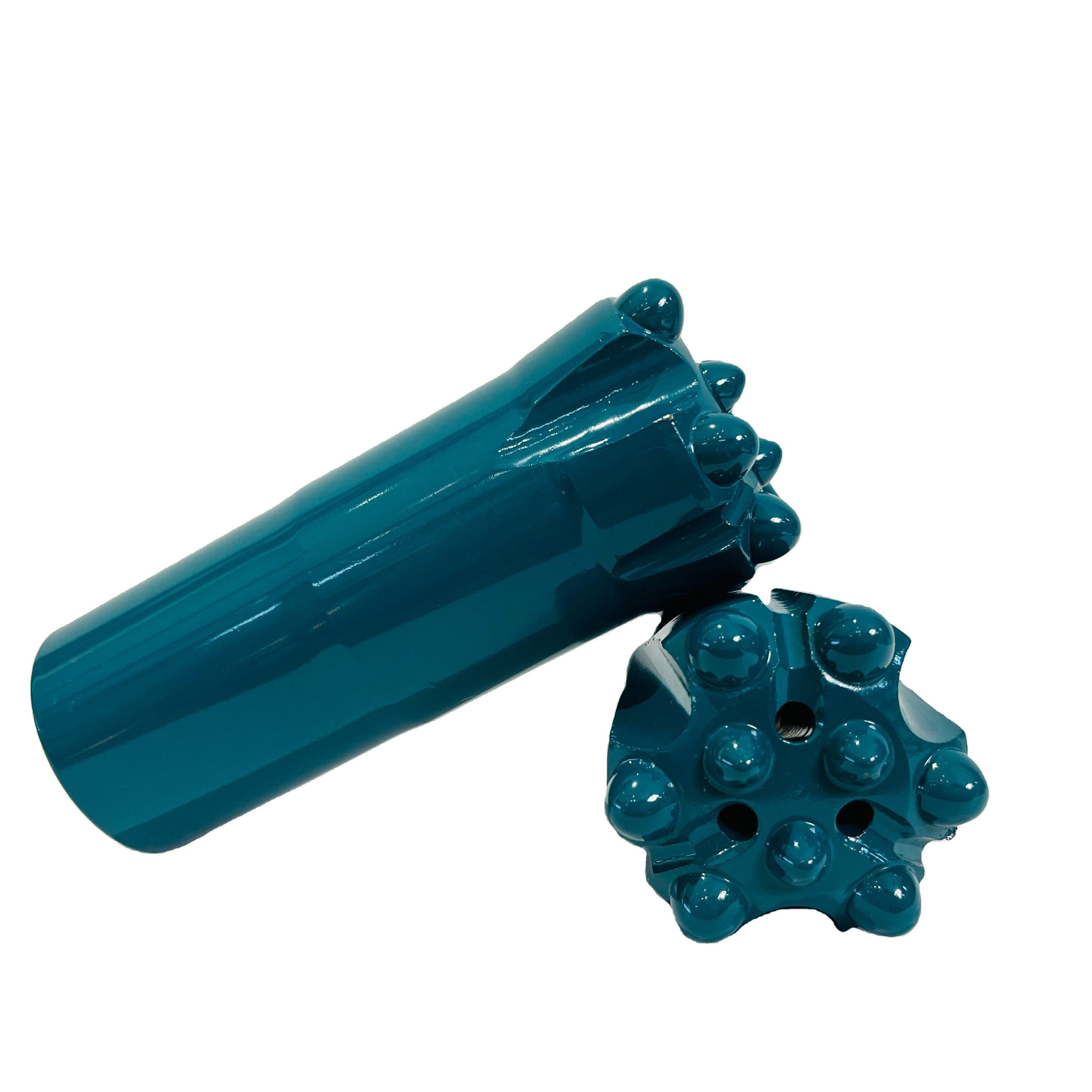

High Performance Rock Drilling Tools 51mm Thread Button Bit for Mining Machines

Introduction

In the global mining and construction industries, drilling efficiency and tool reliability directly determine project timelines and cost efficiency. One tool that plays a crucial role in underground drifting, tunneling, and mining operations is the 51mm R25 R32 R35 SR35 Thread Button Bit. Classified under the broad category of mining machines and drilling tools, this bit is engineered for precision, durability, and high penetration rates in medium to hard rock formations.

As mining operations become more complex and competitive, the demand for high-quality Threaded Button Bits has increased significantly. This article explores in detail the parameters, applications, usage instructions, common questions, and maintenance requirements of the 51mm R25/R32/R35/SR35 thread button bit.

Technical Parameters of the 51mm Thread Button Bit

The 51mm Thread Button Bit comes in multiple thread standards—R25, R32, R35, and SR35—to fit different drilling machines and applications. Below are the key parameters:

• Bit Diameter: 51mm

• Thread Standards: R25, R32, R35, SR35

• Button Shape Options: Ballistic buttons for faster penetration, spherical buttons for higher wear resistance

• Number of Buttons: Typically 6–9 carbide buttons (depending on design)

• Button Material: Tungsten carbide (high strength, wear-resistant)

• Body Material: High-strength alloy steel, heat-treated for durability

• Face Design: Flat face, drop center, or domed, optimized for different rock conditions

• Drilling Method: Top hammer drilling (suitable for drifting, tunneling, bench drilling)

• Shank Compatibility: Fits standard R25, R32, R35, and SR35 threaded rods

• Rock Hardness Range: Designed for medium to hard rock formations (granite, basalt, quartzite, and other abrasive rocks)

• Average Service Life: 3,000–8,000 meters drilled, depending on rock abrasiveness and operating conditions

Applications

The 51mm R25 R32 R35 SR35 Thread Button Bit is widely used in both underground and surface mining operations. Its versatility allows it to perform reliably in a range of environments:

1. Drifting and Tunneling

• Used extensively in underground mining for creating access tunnels and drifts.

• Provides straight drilling capability with excellent deviation control.

2. Mining Operations

• Applied in both open-pit and underground mines for drilling blast holes.

• Ensures efficient fragmentation of hard rock, leading to reduced blasting costs.

3. Quarrying

• Suitable for granite, limestone, and marble quarries.

• Ensures clean hole walls, making it ideal for dimension stone extraction.

4. Construction and Civil Engineering

• Used in tunnel construction for subways, highways, and hydropower projects.

• Effective in drilling anchor holes and reinforcement holes.

5. Bench Drilling

• Ensures efficient bench drilling in surface mines.

• Provides consistent penetration rates in medium to hard rocks.

Usage Instructions

For optimal performance and extended service life, correct usage of the 51mm threaded button bit is essential:

1. Proper Rod and Shank Selection

• Match the bit with the correct threaded rod (R25, R32, R35, SR35).

• Ensure Shank Adapters and couplings are in good condition.

2. Air Flushing

• Always maintain adequate air flushing pressure to remove Cuttings from the hole.

• Insufficient flushing leads to bit overheating and premature button wear.

3. Rotation Speed

• Follow recommended rotation speeds depending on rock hardness.

• Too high speed causes excessive wear; too low reduces penetration efficiency.

4. Impact Energy

• Ensure the rock drill delivers consistent impact energy.

• Poor alignment of energy transfer leads to button breakage.

5. Lubrication and Cooling

• Regular lubrication of drilling tools reduces friction.

• Water injection can be used in dust-sensitive environments.

Maintenance Tips

Regular maintenance significantly extends the service life of the 51mm button bit:

• Button Regrinding:

• Regrind carbide buttons before they become flat or chipped.

• Prevents excessive wear on the steel body.

• Visual Inspection:

• Check for cracks, broken buttons, and body washouts after each shift.

• Thread Care:

• Clean and lubricate threads to prevent galling and seizure.

• Rotation Monitoring:

• Rotate bits across multiple rods to ensure even wear distribution.

• Storage:

• Store in dry, rust-free environments to protect alloy steel.

Frequently Asked Questions (FAQs)

Q1: What is the difference between R25, R32, R35, and SR35 threads?

• These refer to different thread profiles and diameters used in rock drilling rods.

• R25 is smaller and lighter, ideal for shallow holes.

• R32 and R35 offer higher strength and torque transfer for deeper drilling.

• SR35 is a special reinforced thread for demanding operations.

Q2: How do I choose between ballistic and spherical buttons?

• Ballistic buttons: Higher penetration rates in softer rock but wear faster.

• Spherical buttons: Lower penetration but much longer life in very hard or abrasive rocks.

Q3: What is the average drilling depth one bit can achieve?

• Between 3,000 and 8,000 meters depending on rock conditions, flushing quality, and operator practices.

Q4: Can the bit be resharpened?

• Yes. Carbide buttons can be reground multiple times, significantly extending tool life.

Q5: Is this bit suitable for underground coal mines?

• No. It is primarily designed for hard rock mines, quarries, and construction tunneling. Coal requires specialized soft rock bits.

Buying Considerations

When investing in the 51mm R25 R32 R35 SR35 Thread Button Bit, buyers should consider:

1. Rock Conditions

• Match button design (ballistic vs. spherical) to rock hardness.

2. Drilling Machine Compatibility

• Ensure the bit matches the thread type and shank adapter of your rock drill.

3. Supplier Reliability

• Buy from reputable manufacturers with proven heat treatment and carbide brazing technology.

4. Cost vs. Lifetime Value

• Cheaper bits may save on initial cost but wear out quickly, leading to higher overall expenses.

5. Support and Availability

• Ensure supplier offers after-sales support, spares, and regrinding services.

Conclusion

The High Quality 51mm R25 R32 R35 SR35 Thread Button Bit for Drifting and Mining, classified under mining machines, is a powerful drilling tool engineered for high penetration rates, long service life, and operational safety. Its ability to perform in a variety of applications—from drifting and tunneling to quarrying and bench drilling—makes it a valuable investment for mining companies worldwide.

By following correct usage practices, maintaining the bit regularly, and selecting the right thread type for specific drilling environments, operators can achieve maximum efficiency and cost savings. With rising demands in global mining and infrastructure development, the 51mm threaded button bit is set to remain one of the most reliable tools in the industry.
