Solving Soft Coal Seam Drilling Problems — Reinforced Triangular Alloy Drill Rod: Explanation and Case Studies

I

n coal mining and geological exploration, one type of formation gives every drilling engineer a headache — soft, broken, collapse-prone coal seams. Ordinary drill rods perform like "chopsticks in tofu" here — hole collapse, stuck rods, poor chip removal — low efficiency and hidden dangers. The Reinforced Triangular Alloy Drill Rod was developed to solve these problems. This article starts with the pain points of soft coal seam drilling, explains the triangular rod's structure and principles, and uses three real-world cases to show how it has become a "trusted assistant" for complex formations.

Three Major Pain Points in Soft Coal Seam Drilling

Pain point 1: Hole collapse — Soft coal seams have loose structure, poor cementation, and lack the strength to support the hole wall. Ordinary round drill rods have small contact area with the hole wall and cannot provide effective support. During drilling, rod rotation and vibration disturb the wall, causing coal to fall and the hole to collapse. Worse, coal seams often contain water (softens coal) and gas (adds pressure), further destabilizing the wall.

Pain point 2: Rod Sticking — The chip removal channel between an ordinary round rod and the hole wall is narrow and single. Drilling in soft coal produces large volumes of fine chips that easily accumulate in the narrow channel. Once accumulation is severe, the rod gets "stuck" — cannot rotate or be pulled out. Hours or even days may be spent fishing. In severe cases, the rod breaks and the hole is abandoned.

Pain point 3: Limited deep-hole capability — Ordinary rods have limited torsional and bending strength. As hole depth increases, rod self-weight increases and torque transmission distance lengthens — ordinary rods easily bend, deform, or break. Most ordinary rods are limited to effective drilling depths under 50 meters — insufficient for coal mine gas drainage, water exploration, and other deep operations.

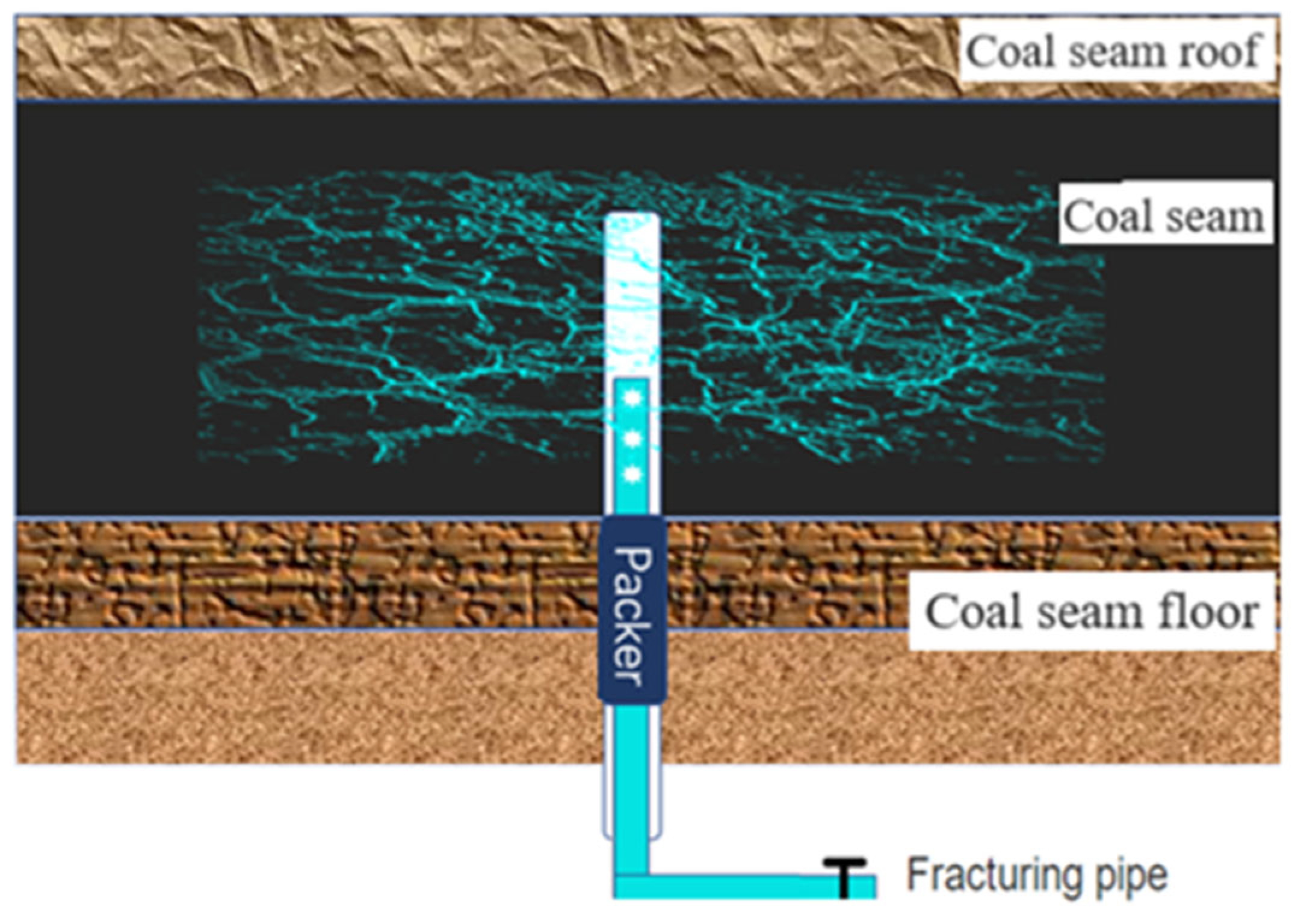

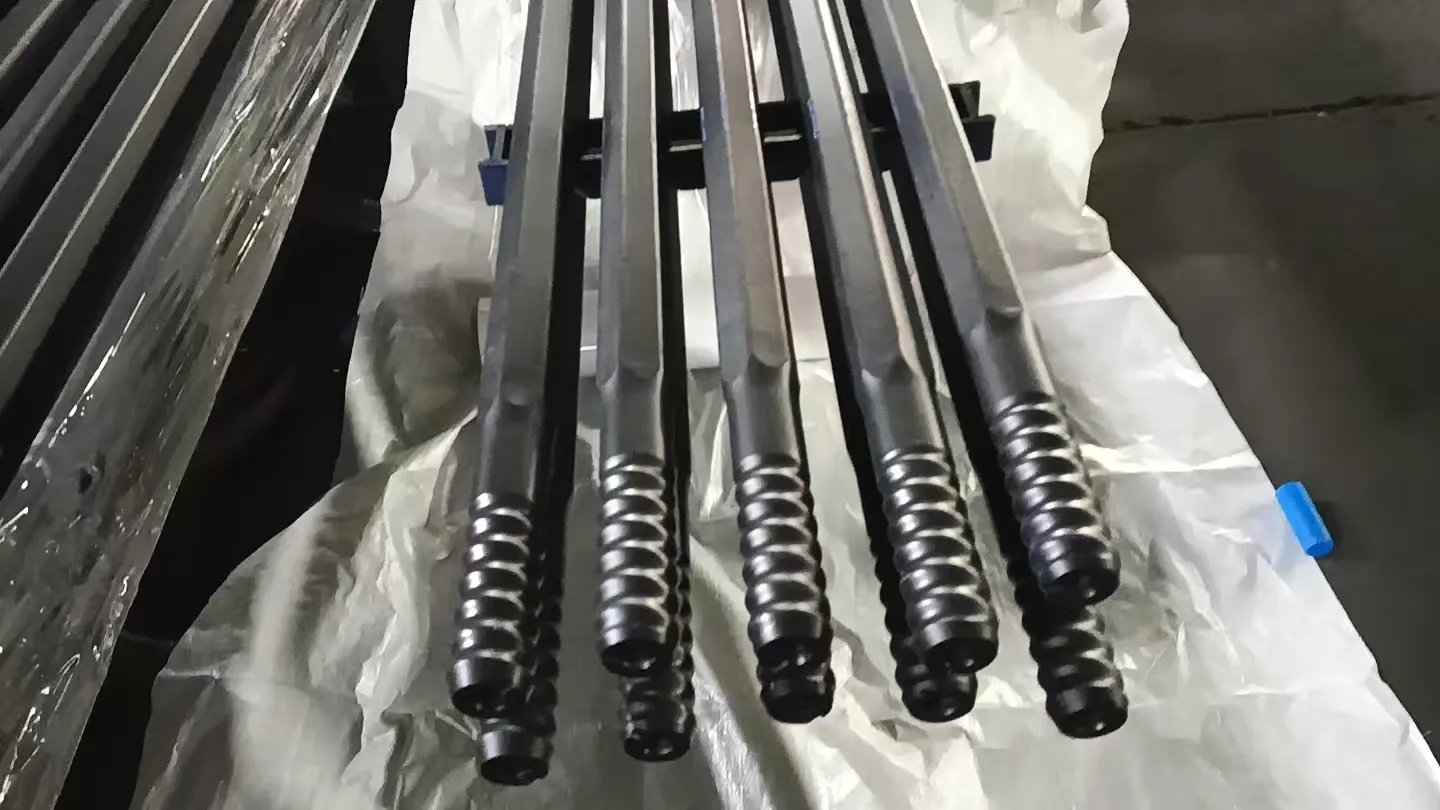

Structural Design and Core Advantages of Reinforced Triangular Alloy Drill Rod

To address these three pain points, the reinforced triangular alloy drill rod uses a systematic solution.

Triangular arc shape — prevents collapse, prevents sticking, fast chip removal — Unlike ordinary round rods, the cross-section of a triangular rod is a triangle with arc-shaped sides. The cleverness of this design:

• Compacts the hole wall: During rotation, the three arc surfaces repeatedly roll and press against the loose coal on the hole wall, compacting coal particles into a "natural protective layer" — reducing collapse without extra wall-stabilizing materials.

• Three chip removal channels: The triangular shape naturally creates three independent semi-circular chip removal channels between the rod and the round hole wall — much larger chip removal space than a single narrow channel. Chips exit quickly — fundamentally avoiding stuck rods.

• Reduced friction: The arc surfaces reduce contact area and friction with the hole wall — smoother air/water chip removal, higher efficiency, faster drilling.

High-strength alloy material — high torque, resists deformation — The "reinforced" name starts with material selection:

• Rod body: High-strength alloy steel (45Mn2, DZ50, R780) — thickened, no weld seam — eliminates the weak point of welding.

• Connector: 42CrMoA alloy steel, quenched and tempered, friction-welded to the rod body — strong and reliable.

• Torque performance: Rated torque 3,500–7,500 N·m — far exceeding ordinary rods. Excellent torsional and bending strength — stable in deep holes.

Deep-hole capability: 50–250 meters — Relying on high torque, stable hole wall, and smooth chip removal, effective drilling depth reaches 50–250 meters — far beyond the 50-meter limit of ordinary rods. This meets requirements for gas drainage, water exploration, and deep geological exploration.

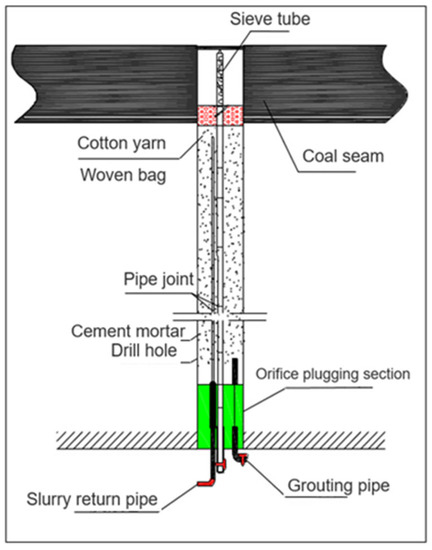

Case 1: High-Gas Mine in Shanxi — Deep Gas Drainage Holes

Background: A high-gas mine in Shanxi. Main coal seam is soft (hardness coefficient f=0.5–0.8), water content 8–12%, gas content 18–22 m³/t. Gas drainage holes required before mining — target depth 150–200 meters.

Challenges: Extremely soft coal — ordinary rods collapsed and stuck at 30–40 meters. High gas pressure — wall instability causes sudden gas surge, safety risk. Previously using ordinary Φ73 mm round rods, maximum depth only 52 meters — far below requirement.

Solution: Reinforced triangular alloy rod, Φ73 mm, triangular arc, DZ50 rod body, 42CrMoA connector, rated torque 5,500 N·m.

Process: First hole (target 180 m) — light weight, slow speed break-in (8 kN, 200 r/min). After entering soft coal, the triangular arc surfaces visibly compacted the wall. Chip return was smooth — no collapse. At 120 meters, torque stayed stable at 3,800–4,200 N·m — no abnormal vibration. Reached 180 meters — rod pulled smoothly, only light coal dust on surface, no sticking. Completed all 12 holes in the drill field — average depth 165 m, maximum 208 m.

Results:

Value: Depth increased from 52 m to 208 m — single-hole coverage expanded 4x — extraction concentration nearly doubled. The entire drill field finished 15 days ahead of schedule.

Case 2: Guizhou Coal Mine — Water Exploration Holes

Background: A mine in Guizhou with multiple aquifers. Floor Maokou limestone aquifer water pressure up to 2.8 MPa. Required strict "probe before excavation" — water exploration holes before roadway advance, target depth 80–120 meters.

Challenges: Soft, broken coal seam with high water content. Ordinary rods in water-bearing soft formations easily collapse and stick. Previously using ordinary rods, maximum depth only 65 meters — multiple stuck pipe incidents, one rod break requiring 36 hours of fishing.

Solution: Reinforced triangular alloy rod, Φ73 mm, triangular arc, 45Mn2 rod body, 42CrMoA connector, rated torque 4,800 N·m. Used hydraulic chip removal.

Process: 5 water exploration holes at the heading face, target 80–120 meters. During drilling, the triangular arc surfaces compacted the water-bearing soft coal wall noticeably. Chip channels stayed clear — water and coal chips returned smoothly, no blockage. At 95 meters, encountered aquifer — water inflow 18 m³/h. Because the wall was compacted by the triangular rod, no collapse occurred — hole remained stable. Successfully drained water. All 5 holes reached target depth — maximum 118 meters.

Results:

Value: Successfully located aquifer position and water volume — provided safety assurance for roadway excavation. Prevented a potential water inrush — direct economic loss avoided over 30 million yuan.

Case 3: Geological Exploration — Guide Hole Through Loose Broken Formation

Background: A geological exploration project in a southwestern mountain area. Needed to drill through an 80-meter-thick loose broken formation (fault fracture zone) to reach stable rock below for coring. The fracture zone consisted of breccia, fault gouge, and broken rock fragments — extremely unstable.

Challenges: Loose broken formation highly prone to collapse — ordinary rods could not maintain wall stability. This section was the guide hole for coring — required straight trajectory to provide a good path for subsequent coring tools. Previous attempts with ordinary rods and mud wall support failed 3 times due to collapse — hole deviation forced re-spudding.

Solution: Reinforced triangular alloy rod as guide hole drilling tool, Φ89 mm, triangular arc, R780 rod body, rated torque 6,800 N·m. Used air chip removal — no wall-stabilizing materials.

Process: Drilled from surface through overburden into the fault fracture zone. During rotation, the triangular arc surfaces continuously rolled and pressed against the fracture zone wall — compacting loose breccia and fault gouge into a self-stabilizing wall. The three chip channels quickly carried rock powder out — no accumulation. Successfully drilled through the 80-meter fracture zone — hole remained straight, deviation only 0.3°/100 m — fully met coring requirements.

Results:

Value: The triangular rod's "self-stabilizing wall" capability crossed the loose broken formation without any wall-stabilizing materials — saving about 80,000 yuan in mud costs and avoiding delays from three collapses.

Usage Tips

Selection matching — Choose rod size based on target depth: 50–120 m use Φ63.5/73 mm; 120–200 m use Φ73/89 mm. Ensure rig torque matches rod rated torque — never over-torque.

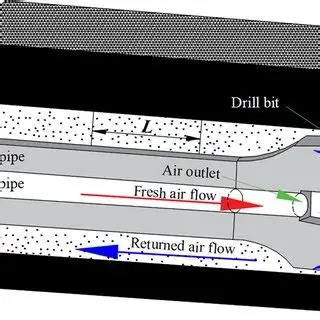

Parameter control — New rods: light weight, slow speed break-in (60–70% normal weight). Soft coal: moderate speed (200–300 r/min) — avoid high speed that disturbs wall. In water-bearing formations, increase air or pump rate to keep chips moving.

Daily inspection — After each pull-out, check triangular arc surfaces for wear. Check connector threads and shoulders. Clean rod surface — remove coal dust and mud residue.

Special environment — In corrosive groundwater, flush rods with clean water after each shift. Before long-term storage, apply rust-preventive oil and install thread protectors.

Summary

The reinforced triangular alloy drill rod is a major breakthrough in drilling technology for complex formations. With its "triangular arc + high-strength alloy" core design, it precisely solves the three major pain points of drilling in soft, broken, collapse-prone coal seams: hole collapse, rod sticking, and limited deep-hole capability. From 200-meter gas drainage holes in a Shanxi high-gas mine, to water exploration holes in a Guizhou water-bearing soft coal seam, to guide holes through a loose broken formation in a southwestern mountain area — the triangular rod has proven its value with solid data: deeper, faster, safer.

Born from a "design for local conditions" philosophy, every optimization addresses real construction needs. Today, it has become an indispensable drilling assistant in coal mining, geological exploration, and engineering. As coal mining extends deeper and geological conditions become more complex, the reinforced triangular alloy drill rod is providing reliable support for more and more complex formation operations.
