Three-Cone Drill Bits: The Workhorse for Complex Rock Formations

On any large open-pit mine — coal, iron, or copper — the first step is drilling blast holes. And for that job, one type of drill bit has become the global standard for mining engineers: the three-cone (or tri-cone) drill bit. Unlike diamond bits that grind rock, three-cone bits crush and shear it. This allows them to drill efficiently in everything from soft shale to ultra-hard quartzite.

This article explains how three-cone bits handle complex rock formations, covering six areas: design, rock-breaking mechanism, key optimization systems, typical applications, failure modes, and future trends.

Design: Three Cones Working Together

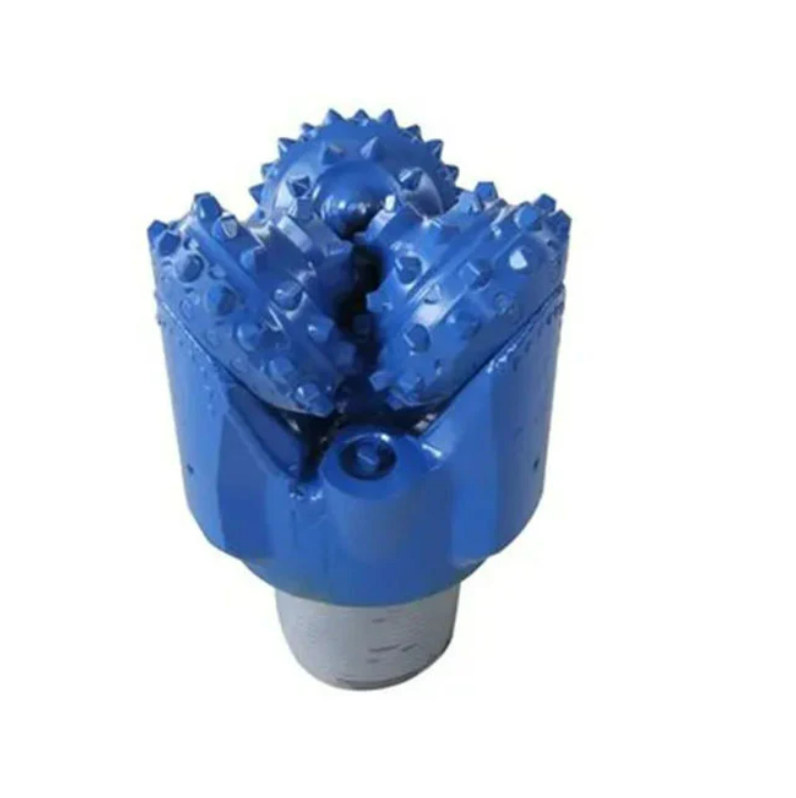

The three-cone bit gets its name from its most visible feature — three independently rotating conical cones. These cones are mounted on three legs of the bit body and rotate on bearing systems. Each cone is covered with cemented carbide teeth, which are the actual rock-breaking elements.

Cone arrangement — The three cones are not symmetrical. Most designs use "offset" or "asymmetric tooth placement" so that the cones' paths at the bottom of the hole complement each other, avoiding redundant breaking of already fractured rock. A typical layout has one primary Cutting cone and two auxiliary cones, together covering the entire hole bottom.

Bearing system — The bearing system is the heart of a three-cone bit. As the bit rotates (typically 50–150 r/min), the cones spin on their journals, heavy radial and axial loads. Common bearing types include:

• Rolling bearings — using rollers or balls, low friction, suitable for medium to high speeds.

• Journal (friction) bearings — using a copper alloy or coated steel bushing, higher load capacity, suitable for heavy, low-speed drilling.

Most modern high-end three-cone bits use a "journal bearing + ball lock" combination — the journal bearing handles heavy loads, while locking balls prevent the cone from coming off.

Sealing and lubrication — To keep rock dust and debris out of the bearings, the bit has an efficient sealing system. Common seals include:

• Rubber lip seals — simple and low-cost, for general conditions.

• Metal face seals — extremely wear-resistant, for high-abrasion, high-speed conditions. Metal seals last 30–50% longer than rubber seals.

The sealed cavity is filled with special grease that resists high temperatures and water washout, keeping bearings running in harsh environments.

Rock Breaking: Crushing, Shearing, and Scraping

A three-cone bit does not grind rock — it crushes and shears it.

Crushing — As the bit rotates under weight, the carbide teeth on the three cones contact the rock one after another. Under enormous pressure (single-tooth loads can reach several tons), the rock surface experiences high compressive stress. When that stress exceeds the rock's compressive strength, the rock is crushed, forming a small crater.

Shearing — Because the cones roll and also slide (due to their cone angle and offset), each tooth does not simply press straight down and lift off. It has a tangential motion component. This creates shear stress in the rock. When shear stress exceeds the rock's shear strength, the rock fractures. Shearing is especially effective in tougher rocks like sandstone and limestone.

Scraping — In soft rock or coal, the teeth also have a scraping action, similar to a lathe tool cutting metal. This is more significant at low weight and high speed.

The combination of crushing, shearing, and scraping allows three-cone bits to handle everything from soft rock (unconfined compressive strength as low as 10 MPa) to extremely hard rock (over 300 MPa). Industry data shows that in medium-hard rock (100–150 MPa), three-cone bits typically achieve penetration rates of 0.5–1.5 meters per minute — two to three times faster than diamond bits under the same conditions.

Four Key Optimization Systems

What makes three-cone bits so adaptable is their ability to be customized for specific rock types. Engineers focus on four systems:

1. Bearing System Optimization

Bearing size, fit clearance, and material choice directly affect bit life and reliability. Scientific bearing calculation is the first step:

• Radial load capacity — calculated based on bit weight and cone weight to determine required roller or journal contact length and diameter.

• Thrust load capacity — thrust bearings (balls or thrust pads) handle the axial component of bit weight.

• Fit clearance — too tight causes overheating and seizure; too loose increases vibration and accelerates fatigue failure. Experience shows that the optimal radial clearance for journal bearings is 0.1–0.2% of journal diameter.

For heavy, high-impact conditions (e.g., drilling through fault zones or extremely hard rock), bearing materials are case-hardened or coated with wear-resistant layers to extend fatigue life.

2. Cutting Structure (Tooth Placement) Optimization

Tooth placement is the core of formation adaptability. Optimization includes:

Tooth shape:

• Spherical teeth — for very hard, brittle rock; crushing-dominated.

• Conical teeth — for medium-hard rock; both crushing and shearing.

• Wedge-shaped (or "chisel") teeth — for soft rock and coal; scraping and shearing.

Tooth density — Hard rock needs higher tooth density to reduce per-tooth load and prevent tooth breakage. Soft rock needs lower density for deeper penetration and higher speed. Tooth density is expressed as teeth per inch or teeth per cone, ranging from 20–30 teeth/cone for soft rock to 50–80 teeth/cone for hard rock.

Carbide grade — The carbide grade is chosen based on rock abrasiveness. Highly abrasive rock (e.g., quartz sandstone) needs low-cobalt (6–8%) fine-grain grades for wear resistance. High-impact rock (e.g., granite) needs higher-cobalt (10–13%) coarse-grain grades for toughness.

3. Gauge Protection Optimization

Gauge protection means maintaining the bit's outer diameter. As the bit wears, its diameter decreases. If it becomes undersize, the hole diameter is too small for blasting or casing. Gauge protection measures include:

• Embedding gauge protection teeth (usually spherical or conical carbide teeth) on the back cone and bit body sides.

• Hardfacing the gauge area with wear-resistant alloy (e.g., tungsten carbide particle rods).

• Combining gauge teeth and hardfacing.

Good gauge design keeps hole diameter deviation under 2 mm over the entire bit life.

4. Chip Removal Optimization

If rock chips are not cleared quickly, they get re-crushed — wasting energy and accelerating bit wear. Three-cone bits remove chips through flow slots between cones and air or water ports on the bit body.

In dry drilling (using compressed air to clear chips), nozzle position and angle are critical. Studies show optimal chip removal when nozzles are angled 15–30° relative to the bit axis. In wet drilling (using water or mud), larger flow slot cross-sections are needed to prevent clogging.

Typical Applications

Three-cone bits dominate these large-scale open-pit applications:

Large coal mines (open-pit) — Blast holes are typically 150–310 mm in diameter and 10–30 meters deep. Formations are mainly sandstone, shale, mudstone, and their interbeds — medium hardness. Three-cone bits handle the alternating soft and hard layers. At a large open-pit coal mine in Inner Mongolia, a 250 mm three-cone bit achieved an average penetration rate of 1.2 meters per minute, with bit life of 3,000–5,000 meters.

Large iron mines — Iron ore is usually hard (compressive strength 150–250 MPa) and highly abrasive. Three-cone bits with spherical carbide teeth, high tooth density, and metal face seals meet the challenge. In the Pilbara region of Australia, three-cone bits are the absolute dominant drilling tool.

Non-ferrous metal mines (copper, gold, lead-zinc) — Formations are complex and variable, often with faults, fracture zones, and hard stringers. Three-cone bits with reinforced bearing systems survive these impact loads without early failure.

Cement raw material mines (limestone) — Limestone has medium hardness (50–120 MPa), but some deposits contain highly abrasive chert nodules. Three-cone bits optimized for tooth shape and carbide grade maintain speed while controlling bit consumption.

Failure Modes and Countermeasures

Even well-designed three-cone bits fail in harsh conditions. Recognizing failure modes is the first step to better usage.

Mine data shows that with proper operation and maintenance, three-cone bit life can increase 25–40%, and tooth breakage/cone loss incidents drop by over 50%.

Trends and Innovation

Three-cone bit technology continues to evolve with mine automation and intelligence.

Smart bits — Temperature and vibration sensors embedded in the bit body monitor bearing temperature, cone rotation, and impact in real time. Data is sent to the surface via wireless through the drill string or mud pulse telemetry. Operators can assess wear and "trip on condition" — not too early, not too late.

New bearing materials — Bearings using ceramic rolling elements or self-lubricating composites (e.g., copper alloys with solid lubricant inserts) maintain very low friction at high speed and high temperature. Lab tests show ceramic rolling bearings last 2–3 times longer than conventional steel bearings.

Biomimetic and optimized tooth placement — Genetic algorithms and AI optimize tooth placement globally. By simulating the complex motion path of each tooth at the hole bottom, engineers calculate contact sequence, load magnitude, and wear distribution — then design "equal wear" tooth patterns where all teeth reach end of life at nearly the same time.

Remanufacturing — Worn three-cone bits can be remanufactured by cleaning, inspecting, replacing failed bearings and teeth, and re-hardfacing. A remanufactured bit costs 50–70% of a new one and lasts 80–90% as long. This offers significant economic benefits for large open-pit mines.

Market research reports put the global three-cone drill bit market at about $1.2 billion in 2023, projected to reach $1.55 billion by 2030 — about 3.5% annual growth. The Asia-Pacific region (especially China, India, and Australia) accounts for over 50% of global demand.

The Bottom Line

The three-cone drill bit, with its unique three-cone design, combines crushing, shearing, and scraping to handle a wider range of rock types than almost any other bit. It is the workhorse of open-pit blast hole drilling. From precision bearing engineering to formation-optimized tooth placement, from gauge protection to chip clearance, the modern three-cone bit embodies systems integration. Facing complex, changing ground conditions, it does not rely on one "magic trick" — but on a complete, tunable, optimizable technology system. As smart sensing and remanufacturing mature, the three-cone bit will remain an irreplaceable tool in large-scale surface mining.
